MOBILE DOCK
- >
- mobile dock
- >
- 3-Way Mobile Dock
3-Way Mobile Dock
Separable Type
Same as One-Body type.
Refer to separable mobile dock's characteristics
Mobile Type
Separable assembled Type

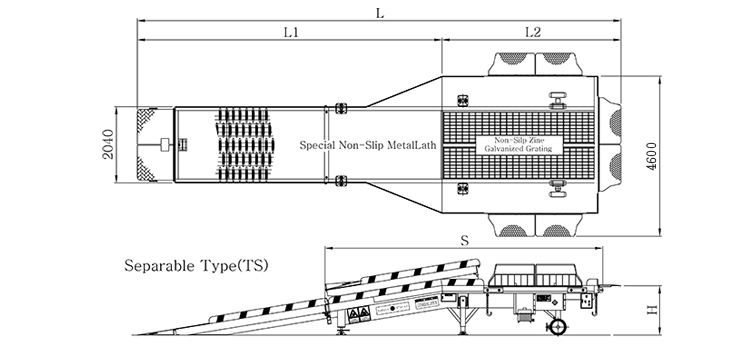

Appearance drawings
SPEC
Model Select Factor| CRITERIA / MODEL | UNIT | 313-TS | 314-TS | 315-TS | 316-TS |
|---|---|---|---|---|---|
| Width(W) | m | 4.6(2.04) | 4.6(2.04) | 4.6(2.04) | 4.6(2.04) |
| Length(L) | m | 13.1 | 14.1 | 15.1 | 16.1 |
| Climb(L1) | m | 8.3 | 8.3 | 10.3 | 10.3 |
| Flat(L2) | m | 4.8 | 5.8 | 4.8 | 5.8 |
| Climb Angle | degree | 8.0~10.2 | 8.0~10.2 | 5.8~7.8 | 5.8~7.8 |
| Storage Statement | kg | 4500 | 4900 | 5100 | 5500 |
| Capacity | kg | 13000~15000 | |||
| Adjusting Height(H) | mm | 1250~1750 | |||
| Height Operating System | Manual landing gear System (Option : Auto System) | ||||
| Tire Shape | ￠420 x 150w Solid Tire (Attached wheel stopping tool) | ||||
| Sub Support | Gaksan M50 x 330L Screw | ||||
| Body Material | SS400 | ||||
| Slope Road Material | Special Non-slip Metallas | ||||
| Flat Plate Material | Galvanized Grating + CH.PL | ||||
| LIP Material | Galvanized CH.PL | ||||
| Stepping Material | Galvanized CH.PL | ||||
| Bumper | Preventing vehicle friction Bumper 6Set attached | ||||
| Tool Box | Tool Box Installation and Provision tools required | ||||
| Paint | Epoxy / Urethane Painting (other colors) | ||||
- MODEL Select : Select considering work environment (Capacity and load capacity of forklift, work site, product feature, safety, convenience)
- The above dimensions are standard specifications for typical tasks, and additional specifications can be custom-ordered according to tasks to be performed on-site.
- The above dimensions can be changed without prior notice due to various reasons such as product quality improvement, etc.
